LED Categories > Slide Based LEDs
Solid State, Slide Based LED Lamps

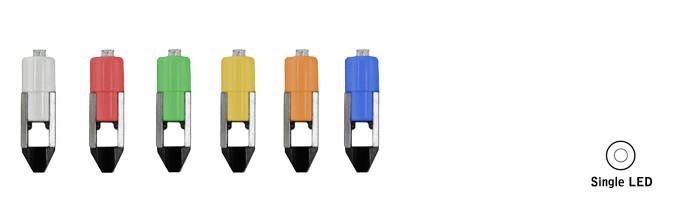

Slide Base # 5
- T-2 Size
- Single Chip Diode
- 100,000 Life Hours
- Ultra-Bright Output
- 160° Viewing
Cross Reference Guide |
 |
|
| Part Number (#): |
Voltage (V): |
Current (mA): |
Wattage (W): |
Dimensions: |
Emitted Color: |
Output (mcd): |
Viewing Angle: |
Replaces: |
| LED6PSBW-ACDC |
6V |
80 |
0.8 |
25.5mm L x 7mm D |
White  |
1,000 |
160° |
Slide Base #5 PSB |
| LED6PSBR-ACDC |
6V |
80 |
0.8 |
25.5mm L x 7mm D |
Red  |
1,000 |
160° |
Slide Base #5 PSB |
| LED6PSBG-ACDC |
6V |
80 |
0.8 |
25.5mm L x 7mm D |
Green  |
1,000 |
160° |
Slide Base #5 PSB |
| LED6PSBY-ACDC |
6V |
80 |
0.8 |
25.5mm L x 7mm D |
Yellow  |
1,000 |
160° |
Slide Base #5 PSB |
| LED6PSBA-ACDC |
6V |
80 |
0.8 |
25.5mm L x 7mm D |
Amber  |
1,000 |
160° |
Slide Base #5 PSB |
| LED6PSBB-ACDC |
6V |
80 |
0.8 |
25.5mm L x 7mm D |
Blue  |
1,000 |
160° |
Slide Base #5 PSB |
| |
| LED12PSBW-ACDC |
12V |
60 |
0.8 |
25.5mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #5 PSB |
| LED12PSBR-ACDC |
12V |
60 |
0.8 |
25.5mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #5 PSB |
| LED12PSBG-ACDC |
12V |
60 |
0.8 |
25.5mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #5 PSB |
| LED12PSBY-ACDC |
12V |
60 |
0.8 |
25.5mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #5 PSB |
| LED12PSBA-ACDC |
12V |
60 |
0.8 |
25.5mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #5 PSB |
| LED12PSBB-ACDC |
12V |
60 |
0.8 |
25.5mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #5 PSB |
| |
| LED28PSBW-ACDC |
24-28V |
20 |
0.8 |
25.5mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #5 PSB |
| LED28PSBR-ACDC |
24-28V |
20 |
0.8 |
25.5mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #5 PSB |
| LED28PSBG-ACDC |
24-28V |
20 |
0.8 |
25.5mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #5 PSB |
| LED28PSBY-ACDC |
24-28V |
20 |
0.8 |
25.5mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #5 PSB |
| LED28PSBA-ACDC |
24-28V |
20 |
0.8 |
25.5mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #5 PSB |
| LED28PSBB-ACDC |
24-28V |
20 |
0.8 |
25.5mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #5 PSB |
| |
| LED48PSBW-ACDC |
48V |
15 |
0.8 |
25.5mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #5 PSB |
| LED48PSBR-ACDC |
48V |
15 |
0.8 |
25.5mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #5 PSB |
| LED48PSBG-ACDC |
48V |
15 |
0.8 |
25.5mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #5 PSB |
| LED48PSBY-ACDC |
48V |
15 |
0.8 |
25.5mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #5 PSB |
| LED48PSBA-ACDC |
48V |
15 |
0.8 |
25.5mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #5 PSB |
| LED48PSBB-ACDC |
48V |
15 |
0.8 |
25.5mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #5 PSB |
| |
| LED60PSBW-ACDC |
60V |
10 |
0.8 |
25.5mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #5 PSB |
| LED60PSBR-ACDC |
60V |
10 |
0.8 |
25.5mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #5 PSB |
| LED60PSBG-ACDC |
60V |
10 |
0.8 |
25.5mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #5 PSB |
| LED60PSBY-ACDC |
60V |
10 |
0.8 |
25.5mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #5 PSB |
| LED60PSBA-ACDC |
60V |
10 |
0.8 |
25.5mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #5 PSB |
| LED60PSBB-ACDC |
60V |
10 |
0.8 |
25.5mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #5 PSB |
| |
| LED120PSBW-ACDC |
120V |
6 |
0.8 |
25.5mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #5 PSB |
| LED120PSBR-ACDC |
120V |
6 |
0.8 |
25.5mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #5 PSB |
| LED120PSBG-ACDC |
120V |
6 |
0.8 |
25.5mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #5 PSB |
| LED120PSBY-ACDC |
120V |
6 |
0.8 |
25.5mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #5 PSB |
| LED120PSBA-ACDC |
120V |
6 |
0.8 |
25.5mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #5 PSB |
| LED120PSBB-ACDC |
120V |
6 |
0.8 |
25.5mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #5 PSB |
| Back to Top |
| Part Number (#): |
Voltage (V): |
Current (mA): |
Wattage (W): |
Dimensions: |
Emitted Color: |
Output (mcd): |
Viewing Angle: |
Replaces: |
| LED-T5.5-28V-W |
24-28V |
20 |
0.8 |
29mm L x 7mm D |
White |
1,000 |
160° |

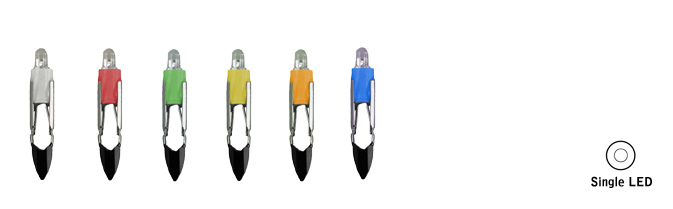

Liliput slide base bulb |
| LED-T5.5-28V-R |
24-28V |
20 |
0.8 |
29mm L x 7mm D |
Red |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-28V-G |
24-28V |
20 |
0.8 |
29mm L x 7mm D |
Green |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-28V-Y |
24-28V |
20 |
0.8 |
29mm L x 7mm D |
Yellow |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-28V-A |
24-28V |
20 |
0.8 |
29mm L x 7mm D |
Amber |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-28V-B |
24-28V |
20 |
0.8 |
29mm L x 7mm D |
Blue |
1,000 |
160° |
Liliput slide base bulb |
| |
| LED-T5.5-48V-W |
48V |
15 |
0.8 |
29mm L x 7mm D |
White |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-48V-R |
48V |
15 |
0.8 |
29mm L x 7mm D |
Red |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-48V-G |
48V |
15 |
0.8 |
29mm L x 7mm D |
Green |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-48V-Y |
48V |
15 |
0.8 |
29mm L x 7mm D |
Yellow |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-48V-A |
48V |
15 |
0.8 |
29mm L x 7mm D |
Amber |
1,000 |
160° |
Liliput slide base bulb |
| LED-T5.5-48V-B |
48V |
15 |
0.8 |
29mm L x 7mm D |
Blue |
1,000 |
160° |
Liliput slide base bulb |
| Back to Top |

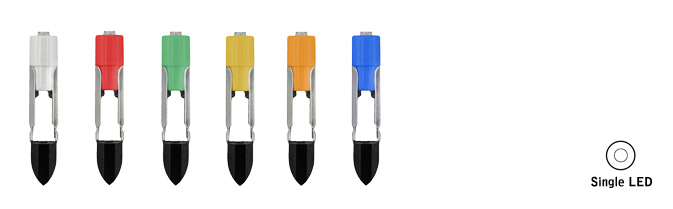

Slide Base # 1
- T-2 Size
- Single Chip Diode
- 100,000 Life Hours
- Ultra-Bright Output
- 160° Viewing
Cross Reference Guide |
 |
|
| Part Number (#): |
Voltage (V): |
Current (mA): |
Wattage (W): |
Dimensions: |
Emitted Color: |
Output (mcd): |
Viewing Angle: |
Replaces: |
| LED-12E1-W-ACDC |
12V |
60 |
0.8 |
37.5mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #1 bulb |
| LED-12E1-R-ACDC |
12V |
60 |
0.8 |
37.5mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #1 bulb |
| LED-12E1-G-ACDC |
12V |
60 |
0.8 |
37.5mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #1 bulb |
| LED-12E1-Y-ACDC |
12V |
60 |
0.8 |
37.5mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #1 bulb |
| LED-12E1-A-ACDC |
12V |
60 |
0.8 |
37.5mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #1 bulb |
| LED-12E1-B-ACDC |
12V |
60 |
0.8 |
37.5mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #1 bulb |
| |
| LED24E1-W-ACDC |
24-28V |
20 |
0.8 |
37.5mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #1 bulb |
| LED24E1-R-ACDC |
24-28V |
20 |
0.8 |
37.5mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #1 bulb |
| LED24E1-G-ACDC |
24-28V |
20 |
0.8 |
37.5mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #1 bulb |
| LED24E1-Y-ACDC |
24-28V |
20 |
0.8 |
37.5mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #1 bulb |
| LED24E1-A-ACDC |
24-28V |
20 |
0.8 |
37.5mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #1 bulb |
| LED24E1-B-ACDC |
24-28V |
20 |
0.8 |
37.5mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #1 bulb |
| |
| LED-48C1-W-ACDC |
48V |
15 |
0.8 |
37.5mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #1 bulb |
| LED-48C1-R-ACDC |
48V |
15 |
0.8 |
37.5mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #1 bulb |
| LED-48C1-G-ACDC |
48V |
15 |
0.8 |
37.5mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #1 bulb |
| LED-48C1-Y-ACDC |
48V |
15 |
0.8 |
37.5mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #1 bulb |
| LED-48C1-A-ACDC |
48V |
15 |
0.8 |
37.5mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #1 bulb |
| LED-48C1-B-ACDC |
48V |
15 |
0.8 |
37.5mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #1 bulb |
| Back to Top |

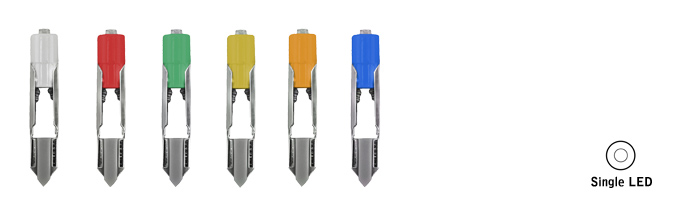

Slide Base # 2
- T-2 Size
- Single Chip Diode
- 100,000 Life Hours
- Ultra-Bright Output
- 160° Viewing
Cross Reference Guide |
 |
|
| Part Number (#): |
Voltage (V): |
Current (mA): |
Wattage (W): |
Dimensions: |
Emitted Color: |
Output (mcd): |
Viewing Angle: |
Replaces: |
| LED-12E2-W-ACDC |
12V |
60 |
0.8 |
39mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #2 bulb |
| LED-12E2-R-ACDC |
12V |
60 |
0.8 |
39mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #2 bulb |
| LED-12E2-G-ACDC |
12V |
60 |
0.8 |
39mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #2 bulb |
| LED-12E2-Y-ACDC |
12V |
60 |
0.8 |
39mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #2 bulb |
| LED-12E2-A-ACDC |
12V |
60 |
0.8 |
39mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #2 bulb |
| LED-12E2-B-ACDC |
12V |
60 |
0.8 |
39mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #2 bulb |
| |
| LED-24E2-W-ACDC |
24-28V |
20 |
0.8 |
39mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #2 bulb |
| LED-24E2-R-ACDC |
24-28V |
20 |
0.8 |
39mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #2 bulb |
| LED-24E2-G-ACDC |
24-28V |
20 |
0.8 |
39mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #2 bulb |
| LED-24E2-Y-ACDC |
24-28V |
20 |
0.8 |
39mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #2 bulb |
| LED-24E2-A-ACDC |
24-28V |
20 |
0.8 |
39mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #2 bulb |
| LED-24E2-B-ACDC |
24-28V |
20 |
0.8 |
39mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #2 bulb |
| |
| LED-48C2-W-ACDC |
48V |
15 |
0.8 |
39mm L x 7mm D |
White |
1,000 |
160° |
Slide Base #2 bulb |
| LED-48C2-R-ACDC |
48V |
15 |
0.8 |
39mm L x 7mm D |
Red |
1,000 |
160° |
Slide Base #2 bulb |
| LED-48C2-G-ACDC |
48V |
15 |
0.8 |
39mm L x 7mm D |
Green |
1,000 |
160° |
Slide Base #2 bulb |
| LED-48C2-Y-ACDC |
48V |
15 |
0.8 |
39mm L x 7mm D |
Yellow |
1,000 |
160° |
Slide Base #2 bulb |
| LED-48C2-A-ACDC |
48V |
15 |
0.8 |
39mm L x 7mm D |
Amber |
1,000 |
160° |
Slide Base #2 bulb |
| LED-48C2-B-ACDC |
48V |
15 |
0.8 |
39mm L x 7mm D |
Blue |
1,000 |
160° |
Slide Base #2 bulb |
| Back to Top |
