Miniature LEDs

LED Categories
Solid State, Based LED Lamps

7-Cluster MB Base - 4-Cluster MB Base - 9-Cluster T-5 Wedge - 4-Cluster T-3 1/4 Wedge

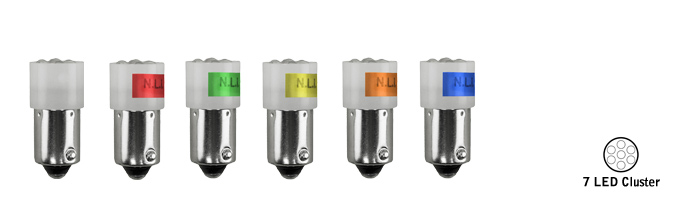

7-Cluster MB Base

T-3 1/4 Size
7 LED Cluster
100,000 Life Hours
Ultra-Bright Output
BA9S MB-Base

Part Number (#):	Voltage (V):	Current (mA):	Wattage (W):	Dimensions:	Emitted Color:	Output (mcd):	Viewing Angle:	Replaces:
BA97-6W	6V	190	1.2	24mm L x 10mm D	White	2,500	120°	6V, MB incandescent
BA97-6R	6V	190	1.2	24mm L x 10mm D	Red	2,500	120°	6V, MB incandescent
BA97-6G	6V	190	1.2	24mm L x 10mm D	Green	2,500	120°	6V, MB incandescent
BA97-6Y	6V	190	1.2	24mm L x 10mm D	Yellow	2,500	120°	6V, MB incandescent
BA97-6A	6V	190	1.2	24mm L x 10mm D	Amber	2,500	120°	6V, MB incandescent
BA97-6B	6V	190	1.2	24mm L x 10mm D	Blue	2,500	120°	6V, MB incandescent

BA97-12W	12-14V	100	1.2	24mm L x 10mm D	White	2,500	120°	12-14V, MB incandescent
BA97-12R	12-14V	100	1.2	24mm L x 10mm D	Red	2,500	120°	12-14V, MB incandescent
BA97-12G	12-14V	100	1.2	24mm L x 10mm D	Green	2,500	120°	12-14V, MB incandescent
BA97-12Y	12-14V	100	1.2	24mm L x 10mm D	Yellow	2,500	120°	12-14V, MB incandescent
BA97-12A	12-14V	100	1.2	24mm L x 10mm D	Amber	2,500	120°	12-14V, MB incandescent
BA97-12B	12-14V	100	1.2	24mm L x 10mm D	Blue	2,500	120°	12-14V, MB incandescent

BA97-28W	24-28V	40	1.2	24mm L x 10mm D	White	2,500	120°	24-28V, MB incandescent
BA97-28R	24-28V	40	1.2	24mm L x 10mm D	Red	2,500	120°	24-28V, MB incandescent
BA97-28G	24-28V	40	1.2	24mm L x 10mm D	Green	2,500	120°	24-28V, MB incandescent
BA97-28Y	24-28V	40	1.2	24mm L x 10mm D	Yellow	2,500	120°	24-28V, MB incandescent
BA97-28A	24-28V	40	1.2	24mm L x 10mm D	Amber	2,500	120°	24-28V, MB incandescent
BA97-28B	24-28V	40	1.2	24mm L x 10mm D	Blue	2,500	120°	24-28V, MB incandescent

BA97-48W	48V	25	1.2	24mm L x 10mm D	White	2,500	120°	48V, MB incandescent
BA97-48R	48V	25	1.2	24mm L x 10mm D	Red	2,500	120°	48V, MB incandescent
BA97-48G	48V	25	1.2	24mm L x 10mm D	Green	2,500	120°	48V, MB incandescent
BA97-48Y	48V	25	1.2	24mm L x 10mm D	Yellow	2,500	120°	48V, MB incandescent
BA97-48A	48V	25	1.2	24mm L x 10mm D	Amber	2,500	120°	48V, MB incandescent
BA97-48B	48V	25	1.2	24mm L x 10mm D	Blue	2,500	120°	48V, MB incandescent

BA97-60W	60V	20	1.2	24mm L x 10mm D	White	2,500	120°	60V, MB incandescent
BA97-60R	60V	20	1.2	24mm L x 10mm D	Red	2,500	120°	60V, MB incandescent
BA97-60G	60V	20	1.2	24mm L x 10mm D	Green	2,500	120°	60V, MB incandescent
BA97-60Y	60V	20	1.2	24mm L x 10mm D	Yellow	2,500	120°	60V, MB incandescent
BA97-60A	60V	20	1.2	24mm L x 10mm D	Amber	2,500	120°	60V, MB incandescent
BA97-60B	60V	20	1.2	24mm L x 10mm D	Blue	2,500	120°	60V, MB incandescent

BA97-120W	120V	10	1.2	24mm L x 10mm D	White	2,500	120°	120V, MB incandescent
BA97-120R	120V	10	1.2	24mm L x 10mm D	Red	2,500	120°	120V, MB incandescent
BA97-120G	120V	10	1.2	24mm L x 10mm D	Green	2,500	120°	120V, MB incandescent
BA97-120Y	120V	10	1.2	24mm L x 10mm D	Yellow	2,500	120°	120V, MB incandescent
BA97-120A	120V	10	1.2	24mm L x 10mm D	Amber	2,500	120°	120V, MB incandescent
BA97-120B	120V	10	1.2	24mm L x 10mm D	Blue	2,500	120°	120V, MB incandescent
Back to Top

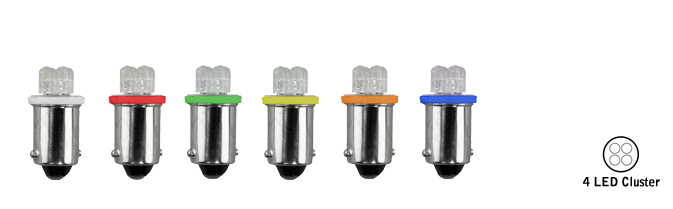

4-Cluster MB Base

T-3 1/4 Size
4 LED Cluster
100,000 Life Hours
Ultra-Bright Output
BA9S MB-Base

Cross Reference Guide

Part Number (#):	Voltage (V):	Current (mA):	Wattage (W):	Dimensions:	Emitted Color:	Output (mcd):	Viewing Angle:	Replaces:
BA94-6W	6V	190	1.2	24mm L x 10mm D	White	2,500	120°	6V, MB incandescent
BA94-6R	6V	190	1.2	24mm L x 10mm D	Red	2,500	120°	6V, MB incandescent
BA94-6G	6V	190	1.2	24mm L x 10mm D	Green	2,500	120°	6V, MB incandescent
BA94-6Y	6V	190	1.2	24mm L x 10mm D	Yellow	2,500	120°	6V, MB incandescent
BA94-6A	6V	190	1.2	24mm L x 10mm D	Amber	2,500	120°	6V, MB incandescent
BA94-6B	6V	190	1.2	24mm L x 10mm D	Blue	2,500	120°	6V, MB incandescent

BA94-12W	12-14V	100	1.2	24mm L x 10mm D	White	2,500	120°	12-14V, MB incandescent
BA94-12R	12-14V	100	1.2	24mm L x 10mm D	Red	2,500	120°	12-14V, MB incandescent
BA94-12G	12-14V	100	1.2	24mm L x 10mm D	Green	2,500	120°	12-14V, MB incandescent
BA94-12Y	12-14V	100	1.2	24mm L x 10mm D	Yellow	2,500	120°	12-14V, MB incandescent
BA94-12A	12-14V	100	1.2	24mm L x 10mm D	Amber	2,500	120°	12-14V, MB incandescent
BA94-12B	12-14V	100	1.2	24mm L x 10mm D	Blue	2,500	120°	12-14V, MB incandescent

BA94-28W	24-28V	40	1.2	24mm L x 10mm D	White	2,500	120°	24-28V, MB incandescent
BA94-28R	24-28V	40	1.2	24mm L x 10mm D	Red	2,500	120°	24-28V, MB incandescent
BA94-28G	24-28V	40	1.2	24mm L x 10mm D	Green	2,500	120°	24-28V, MB incandescent
BA94-28Y	24-28V	40	1.2	24mm L x 10mm D	Yellow	2,500	120°	24-28V, MB incandescent
BA94-28A	24-28V	40	1.2	24mm L x 10mm D	Amber	2,500	120°	24-28V, MB incandescent
BA94-28B	24-28V	40	1.2	24mm L x 10mm D	Blue	2,500	120°	24-28V, MB incandescent

BA94-48W	48V	25	1.2	24mm L x 10mm D	White	2,500	120°	48V, MB incandescent
BA94-48R	48V	25	1.2	24mm L x 10mm D	Red	2,500	120°	48V, MB incandescent
BA94-48G	48V	25	1.2	24mm L x 10mm D	Green	2,500	120°	48V, MB incandescent
BA94-48Y	48V	25	1.2	24mm L x 10mm D	Yellow	2,500	120°	48V, MB incandescent
BA94-48A	48V	25	1.2	24mm L x 10mm D	Amber	2,500	120°	48V, MB incandescent
BA94-48B	48V	25	1.2	24mm L x 10mm D	Blue	2,500	120°	48V, MB incandescent

BA94-60W	60V	20	1.2	24mm L x 10mm D	White	2,500	120°	60V, MB incandescent
BA94-60R	60V	20	1.2	24mm L x 10mm D	Red	2,500	120°	60V, MB incandescent
BA94-60G	60V	20	1.2	24mm L x 10mm D	Green	2,500	120°	60V, MB incandescent
BA94-60Y	60V	20	1.2	24mm L x 10mm D	Yellow	2,500	120°	60V, MB incandescent
BA94-60A	60V	20	1.2	24mm L x 10mm D	Amber	2,500	120°	60V, MB incandescent
BA94-60B	60V	20	1.2	24mm L x 10mm D	Blue	2,500	120°	60V, MB incandescent

BA94-120W	120V	10	1.2	24mm L x 10mm D	White	2,500	120°	120V, MB incandescent
BA94-120R	120V	10	1.2	24mm L x 10mm D	Red	2,500	120°	120V, MB incandescent
BA94-120G	120V	10	1.2	24mm L x 10mm D	Green	2,500	120°	120V, MB incandescent
BA94-120Y	120V	10	1.2	24mm L x 10mm D	Yellow	2,500	120°	120V, MB incandescent
BA94-120A	120V	10	1.2	24mm L x 10mm D	Amber	2,500	120°	120V, MB incandescent
BA94-120B	120V	10	1.2	24mm L x 10mm D	Blue	2,500	120°	120V, MB incandescent
Back to Top

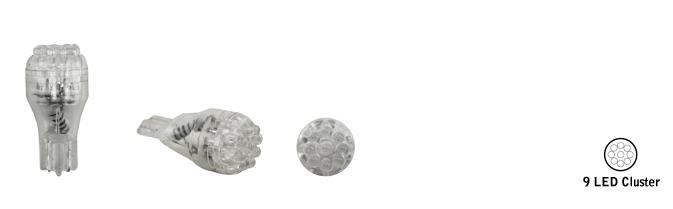

9-Cluster T-5 Wedge

T-5 Size
9 LED Cluster
100,000 Life Hours
Ultra-Bright Output
120° Viewing

Cross Reference Guide

Part Number (#):	Voltage (V):	Current (mA):	Wattage (W):	Dimensions:	Emitted Color:	Output (mcd):	Viewing Angle:	Replaces:
W909-T5-6W	6V	260	1.6	32mm L x 16mm D	White	3,000	120°	6V, T5 Wedge Base
W909-T5-6R	6V	260	1.6	32mm L x 16mm D	Red	3,000	120°	6V, T5 Wedge Base
W909-T5-6G	6V	260	1.6	32mm L x 16mm D	Green	3,000	120°	6V, T5 Wedge Base
W909-T5-6Y	6V	260	1.6	32mm L x 16mm D	Yellow	3,000	120°	6V, T5 Wedge Base
W909-T5-6A	6V	260	1.6	32mm L x 16mm D	Amber	3,000	120°	6V, T5 Wedge Base
W909-T5-6B	6V	260	1.6	32mm L x 16mm D	Blue	3,000	120°	6V, T5 Wedge Base

W909-T5-12W	12-14V	130	1.6	32mm L x 16mm D	White	3,000	120°	12-14V, T5 Wedge Base
W909-T5-12R	12-14V	130	1.6	32mm L x 16mm D	Red	3,000	120°	12-14V, T5 Wedge Base
W909-T5-12G	12-14V	130	1.6	32mm L x 16mm D	Green	3,000	120°	12-14V, T5 Wedge Base
W909-T5-12Y	12-14V	130	1.6	32mm L x 16mm D	Yellow	3,000	120°	12-14V, T5 Wedge Base
W909-T5-12A	12-14V	130	1.6	32mm L x 16mm D	Amber	3,000	120°	12-14V, T5 Wedge Base
W909-T5-12B	12-14V	130	1.6	32mm L x 16mm D	Blue	3,000	120°	12-14V, T5 Wedge Base

W909-T5-28W	24-28V	60	1.6	32mm L x 16mm D	White	3,000	120°	24-28V, T5 Wedge Base
W909-T5-28R	24-28V	60	1.6	32mm L x 16mm D	Red	3,000	120°	24-28V, T5 Wedge Base
W909-T5-28G	24-28V	60	1.6	32mm L x 16mm D	Green	3,000	120°	24-28V, T5 Wedge Base
W909-T5-28Y	24-28V	60	1.6	32mm L x 16mm D	Yellow	3,000	120°	24-28V, T5 Wedge Base
W909-T5-28A	24-28V	60	1.6	32mm L x 16mm D	Amber	3,000	120°	24-28V, T5 Wedge Base
W909-T5-28B	24-28V	60	1.6	32mm L x 16mm D	Blue	3,000	120°	24-28V, T5 Wedge Base
Back to Top

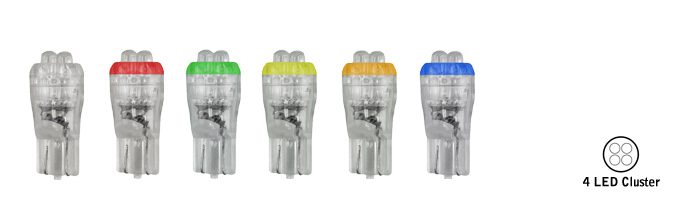

4-Cluster LED Wedge

T-3 1/4 Size
4 LED Cluster
100,000 Life Hours
Ultra-Bright Output
120° Viewing

Cross Reference Guide

Part Number (#):	Voltage (V):	Current (mA):	Wattage (W):	Dimensions:	Emitted Color:	Output (mcd):	Viewing Angle:	Replaces:
W904-6W	6V	130	0.8	26mm L x 10mm D	White	2,500	120°	6V, T-3 1/4 Wedge Base
W904-6R	6V	130	0.8	26mm L x 10mm D	Red	2,500	120°	6V, T-3 1/4 Wedge Base
W904-6G	6V	130	0.8	26mm L x 10mm D	Green	2,500	120°	6V, T-3 1/4 Wedge Base
W904-6Y	6V	130	0.8	26mm L x 10mm D	Yellow	2,500	120°	6V, T-3 1/4 Wedge Base
W904-6A	6V	130	0.8	26mm L x 10mm D	Amber	2,500	120°	6V, T-3 1/4 Wedge Base
W904-6B	6V	130	0.8	26mm L x 10mm D	Blue	2,500	120°	6V, T-3 1/4 Wedge Base

W904-12W	12-14V	60	0.8	26mm L x 10mm D	White	2,500	120°	12-14V, T-3 1/4 Wedge
W904-12R	12-14V	60	0.8	26mm L x 10mm D	Red	2,500	120°	12-14V, T-3 1/4 Wedge
W904-12G	12-14V	60	0.8	26mm L x 10mm D	Green	2,500	120°	12-14V, T-3 1/4 Wedge
W904-12Y	12-14V	60	0.8	26mm L x 10mm D	Yellow	2,500	120°	12-14V, T-3 1/4 Wedge
W904-12A	12-14V	60	0.8	26mm L x 10mm D	Amber	2,500	120°	12-14V, T-3 1/4 Wedge
W904-12B	12-14V	60	0.8	26mm L x 10mm D	Blue	2,500	120°	12-14V, T-3 1/4 Wedge

W904-28W	24-28V	30	0.8	26mm L x 10mm D	White	2,500	120°	24-28V, T-3 1/4 Wedge
W904-28R	24-28V	30	0.8	26mm L x 10mm D	Red	2,500	120°	24-28V, T-3 1/4 Wedge
W904-28G	24-28V	30	0.8	26mm L x 10mm D	Green	2,500	120°	24-28V, T-3 1/4 Wedge
W904-28Y	24-28V	30	0.8	26mm L x 10mm D	Yellow	2,500	120°	24-28V, T-3 1/4 Wedge
W904-28A	24-28V	30	0.8	26mm L x 10mm D	Amber	2,500	120°	24-28V, T-3 1/4 Wedge
W904-28B	24-28V	30	0.8	26mm L x 10mm D	Blue	2,500	120°	24-28V, T-3 1/4 Wedge
