LED Categories > S-6 Cluster Top LEDs
Solid State, Based LED Lamps

S-6 Long LED - S-6 Short LED - S-6 Protected (DC) - S-6 Protected (SC) - LED 67-type (SC) - LED 68-type (DC)

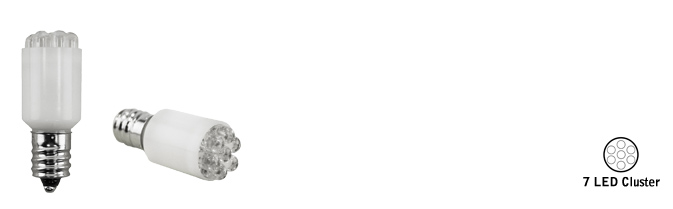

S-6 Long LED

  • 7 LED Cluster
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Candelabra Base (E-12)

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED-6S6-120W 120V 15 1.8 46mm L x 17mm D White green-color 3,000 120° S-6 Incandescent
LED-6S6-120R 120V 15 1.8 46mm L x 17mm D Red green-color 3,000 120° S-6 Incandescent
LED-6S6-120G 120V 15 1.8 46mm L x 17mm D Green green-color 3,000 120° S-6 Incandescent
LED-6S6-120Y 120V 15 1.8 46mm L x 17mm D Yellow green-color 3,000 120° S-6 Incandescent
LED-6S6-120A 120V 15 1.8 46mm L x 17mm D Amber green-color 3,000 120° S-6 Incandescent
LED-6S6-120B 120V 15 1.8 46mm L x 17mm D Blue green-color 3,000 120° S-6 Incandescent

LED-6S6-220W 220V 8 1.8 46mm L x 17mm D White green-color 3,000 120° S-6 Incandescent
LED-6S6-220R 220V 8 1.8 46mm L x 17mm D Red green-color 3,000 120° S-6 Incandescent
LED-6S6-220G 220V 8 1.8 46mm L x 17mm D Green green-color 3,000 120° S-6 Incandescent
LED-6S6-220Y 220V 8 1.8 46mm L x 17mm D Yellow green-color 3,000 120° S-6 Incandescent
LED-6S6-220A 220V 8 1.8 46mm L x 17mm D Amber green-color 3,000 120° S-6 Incandescent
LED-6S6-220B 220V 8 1.8 46mm L x 17mm D Blue green-color 3,000 120° S-6 Incandescent
Back to Top

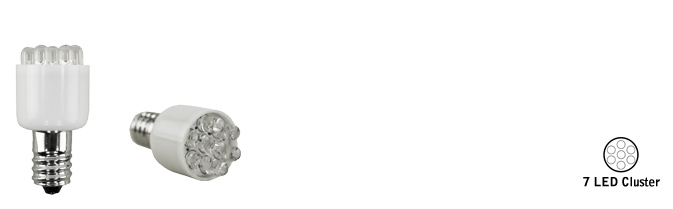

S-6 Short LED

  • 7 LED Cluster
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Candelabra Base (E-12)

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LEDT20E12-14W 12-14V 150 1.8 42mm L x 21mm D White green-color 3,000 120° S-6 incandescent
LEDT20E12-14R 12-14V 150 1.8 42mm L x 21mm D Red green-color 3,000 120° S-6 incandescent
LEDT20E12-14G 12-14V 150 1.8 42mm L x 21mm D Green green-color 3,000 120° S-6 incandescent
LEDT20E12-14Y 12-14V 150 1.8 42mm L x 21mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT20E12-14A 12-14V 150 1.8 42mm L x 21mm D Amber green-color 3,000 120° S-6 incandescent
LEDT20E12-14B 12-14V 150 1.8 42mm L x 21mm D Blue green-color 3,000 120° S-6 incandescent

LEDT20E12-28W 28V 60 1.8 42mm L x 21mm D White green-color 3,000 120° S-6 incandescent
LEDT20E12-28R 28V 60 1.8 42mm L x 21mm D Red green-color 3,000 120° S-6 incandescent
LEDT20E12-28G 28V 60 1.8 42mm L x 21mm D Green green-color 3,000 120° S-6 incandescent
LEDT20E12-28Y 28V 60 1.8 42mm L x 21mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT20E12-28A 28V 60 1.8 42mm L x 21mm D Amber green-color 3,000 120° S-6 incandescent
LEDT20E12-28B 28V 60 1.8 42mm L x 21mm D Blue green-color 3,000 120° S-6 incandescent

LEDT20E12-120W 120V 15 1.8 42mm L x 21mm D White green-color 3,000 120° S-6 incandescent
LEDT20E12-120R 120V 15 1.8 42mm L x 21mm D Red green-color 3,000 120° S-6 incandescent
LEDT20E12-120G 120V 15 1.8 42mm L x 21mm D Green green-color 3,000 120° S-6 incandescent
LEDT20E12-120Y 120V 15 1.8 42mm L x 21mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT20E12-120A 120V 15 1.8 42mm L x 21mm D Amber green-color 3,000 120° S-6 incandescent
LEDT20E12-120B 120V 15 1.8 42mm L x 21mm D Blue green-color 3,000 120° S-6 incandescent
Back to Top

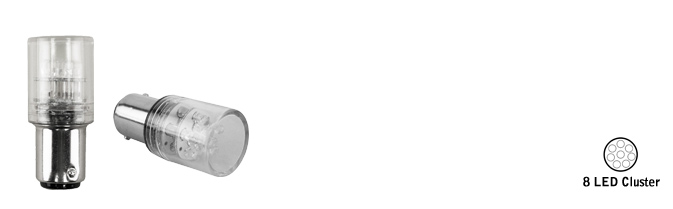

S-6 Protected (DC)

  • 8 LED Cluster
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Double Contact
    Bayonet Base (BA15D)

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LEDT18D-14W 12-14V 150 1.8 45mm L x 20mm D White green-color 3,000 120° S-6 incandescent
LEDT18D-14R 12-14V 150 1.8 45mm L x 20mm D Red green-color 3,000 120° S-6 incandescent
LEDT18D-14G 12-14V 150 1.8 45mm L x 20mm D Green green-color 3,000 120° S-6 incandescent
LEDT18D-14Y 12-14V 150 1.8 45mm L x 20mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT18D-14A 12-14V 150 1.8 45mm L x 20mm D Amber green-color 3,000 120° S-6 incandescent
LEDT18D-14B 12-14V 150 1.8 45mm L x 20mm D Blue green-color 3,000 120° S-6 incandescent

LEDT18D-28W 28V 60 1.8 45mm L x 20mm D White green-color 3,000 120° S-6 incandescent
LEDT18D-28R 28V 60 1.8 45mm L x 20mm D Red green-color 3,000 120° S-6 incandescent
LEDT18D-28G 28V 60 1.8 45mm L x 20mm D Green green-color 3,000 120° S-6 incandescent
LEDT18D-28Y 28V 60 1.8 45mm L x 20mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT18D-28A 28V 60 1.8 45mm L x 20mm D Amber green-color 3,000 120° S-6 incandescent
LEDT18D-28B 28V 60 1.8 45mm L x 20mm D Blue green-color 3,000 120° S-6 incandescent

LEDT18D-120W 120V 15 1.8 45mm L x 20mm D White green-color 3,000 120° S-6 incandescent
LEDT18D-120R 120V 15 1.8 45mm L x 20mm D Red green-color 3,000 120° S-6 incandescent
LEDT18D-120G 120V 15 1.8 45mm L x 20mm D Green green-color 3,000 120° S-6 incandescent
LEDT18D-120Y 120V 15 1.8 45mm L x 20mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT18D-120A 120V 15 1.8 45mm L x 20mm D Amber green-color 3,000 120° S-6 incandescent
LEDT18D-120B 120V 15 1.8 45mm L x 20mm D Blue green-color 3,000 120° S-6 incandescent
Back to Top

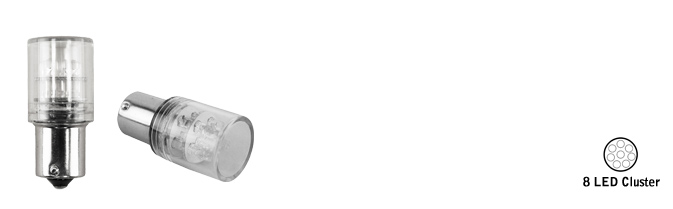

S-6 Protected (SC)

  • 8 LED Cluster
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Single Contact
    Bayonet Base (BA15S)

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LEDT18S-14W 12-14V 150 1.8 45mm L x 20mm D White green-color 3,000 120° S-6 incandescent
LEDT18S-14R 12-14V 150 1.8 45mm L x 20mm D Red green-color 3,000 120° S-6 incandescent
LEDT18S-14G 12-14V 150 1.8 45mm L x 20mm D Green green-color 3,000 120° S-6 incandescent
LEDT18S-14Y 12-14V 150 1.8 45mm L x 20mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT18S-14A 12-14V 150 1.8 45mm L x 20mm D Amber green-color 3,000 120° S-6 incandescent
LEDT18S-14B 12-14V 150 1.8 45mm L x 20mm D Blue green-color 3,000 120° S-6 incandescent

LEDT18S-28W 28V 60 1.8 45mm L x 20mm D White green-color 3,000 120° S-6 incandescent
LEDT18S-28R 28V 60 1.8 45mm L x 20mm D Red green-color 3,000 120° S-6 incandescent
LEDT18S-28G 28V 60 1.8 45mm L x 20mm D Green green-color 3,000 120° S-6 incandescent
LEDT18S-28Y 28V 60 1.8 45mm L x 20mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT18S-28A 28V 60 1.8 45mm L x 20mm D Amber green-color 3,000 120° S-6 incandescent
LEDT18S-28B 28V 60 1.8 45mm L x 20mm D Blue green-color 3,000 120° S-6 incandescent

LEDT18S-120W 120V 15 1.8 45mm L x 20mm D White green-color 3,000 120° S-6 incandescent
LEDT18S-120R 120V 15 1.8 45mm L x 20mm D Red green-color 3,000 120° S-6 incandescent
LEDT18S-120G 120V 15 1.8 45mm L x 20mm D Green green-color 3,000 120° S-6 incandescent
LEDT18S-120Y 120V 15 1.8 45mm L x 20mm D Yellow green-color 3,000 120° S-6 incandescent
LEDT18S-120A 120V 15 1.8 45mm L x 20mm D Amber green-color 3,000 120° S-6 incandescent
LEDT18S-120B 120V 15 1.8 45mm L x 20mm D Blue green-color 3,000 120° S-6 incandescent
Back to Top

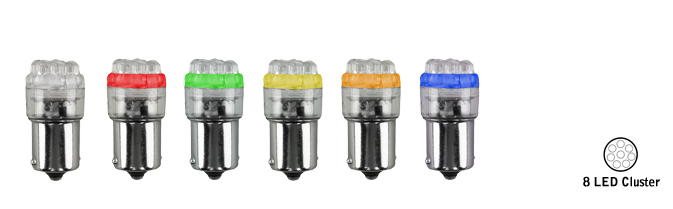

LED 67-type (SC)

  • 8 LED Cluster
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Single Contact
    Bayonet Base (BA15S)

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED-67-14W 12-14V 150 1.8 39mm L x 19mm D White green-color 3,000 120° SC Base - S-6 Bulb
LED-67-14R 12-14V 150 1.8 39mm L x 19mm D Red green-color 3,000 120° SC Base - S-6 Bulb
LED-67-14G 12-14V 150 1.8 39mm L x 19mm D Green green-color 3,000 120° SC Base - S-6 Bulb
LED-67-14Y 12-14V 150 1.8 39mm L x 19mm D Yellow green-color 3,000 120° SC Base - S-6 Bulb
LED-67-14A 12-14V 150 1.8 39mm L x 19mm D Amber green-color 3,000 120° SC Base - S-6 Bulb
LED-67-14B 12-14V 150 1.8 39mm L x 19mm D Blue green-color 3,000 120° SC Base - S-6 Bulb

LED-67-28W 28V 60 1.8 39mm L x 19mm D White green-color 3,000 120° SC Base - S-6 Bulb
LED-67-28R 28V 60 1.8 39mm L x 19mm D Red green-color 3,000 120° SC Base - S-6 Bulb
LED-67-28G 28V 60 1.8 39mm L x 19mm D Green green-color 3,000 120° SC Base - S-6 Bulb
LED-67-28Y 28V 60 1.8 39mm L x 19mm D Yellow green-color 3,000 120° SC Base - S-6 Bulb
LED-67-28A 28V 60 1.8 39mm L x 19mm D Amber green-color 3,000 120° SC Base - S-6 Bulb
LED-67-28B 28V 60 1.8 39mm L x 19mm D Blue green-color 3,000 120° SC Base - S-6 Bulb
Back to Top

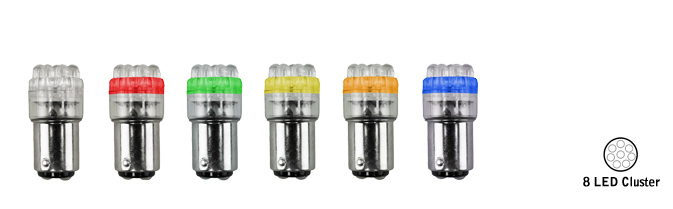

LED 68 type (DC)

  • 8 LED Cluster
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Double Contact
    Bayonet Base (BA15D)

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED-68-14W 12-14V 150 1.8 39mm L x 19mm D White green-color 3,000 120° DC Base - S-6 Bulb
LED-68-14R 12-14V 150 1.8 39mm L x 19mm D Red green-color 3,000 120° DC Base - S-6 Bulb
LED-68-14G 12-14V 150 1.8 39mm L x 19mm D Green green-color 3,000 120° DC Base - S-6 Bulb
LED-68-14Y 12-14V 150 1.8 39mm L x 19mm D Yellow green-color 3,000 120° DC Base - S-6 Bulb
LED-68-14A 12-14V 150 1.8 39mm L x 19mm D Amber green-color 3,000 120° DC Base - S-6 Bulb
LED-68-14B 12-14V 150 1.8 39mm L x 19mm D Blue green-color 3,000 120° DC Base - S-6 Bulb

LED-68-28W 28V 60 1.8 39mm L x 19mm D White green-color 3,000 120° DC Base - S-6 Bulb
LED-68-28R 28V 60 1.8 39mm L x 19mm D Red green-color 3,000 120° DC Base - S-6 Bulb
LED-68-28G 28V 60 1.8 39mm L x 19mm D Green green-color 3,000 120° DC Base - S-6 Bulb
LED-68-28Y 28V 60 1.8 39mm L x 19mm D Yellow green-color 3,000 120° DC Base - S-6 Bulb
LED-68-28A 28V 60 1.8 39mm L x 19mm D Amber green-color 3,000 120° DC Base - S-6 Bulb
LED-68-28B 28V 60 1.8 39mm L x 19mm D Blue green-color 3,000 120° DC Base - S-6 Bulb
Back to Top
